Attributes:
* Drilling Diameter: 3.1mm / 0.122″
* Tool Flute Length: 25mm / 0.98″
* Shank Diameter: 3.1mm / 0.122″
* Overall Length: 50mm / 1.97″
* Cutting Direction: Left Hand
* Material: YG6X (C3/K10) Tungsten Carbide
* Average Cobalt Content: 6%
* Tool Flute Type: Spiral
* Hardness: 91HRA
What Is Included:

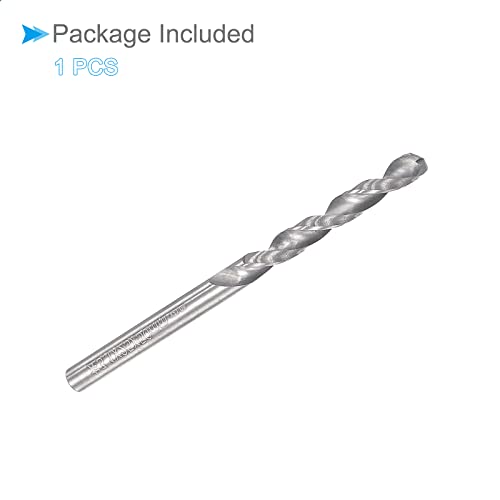

* 1 Piece x Solid Carbide Drill Bits
Applications & Features:
— Widely used for precision drilling of alloy steel, stainless steel, tool steel, carbon steel, cast iron, copper, hard plastic in maintenance departments, machine shops, and other industries. Use on machining centers, CNC lathes, drill presses and bench drills. Selecting the correct lubricant can facilitate cutting or cooling, making cutting easier, improving dimensional accuracy and extending tool life. Drill metal with high hardness, the rotational speed should be slower than normal drilling.
— YG6X (C3/K10) tungsten carbide is a micro grain tungsten-cobalt alloy with an average cobalt content of 6%. The solid carbide drill bits has high hardness (91.5HRA), wear resistance, corrosion resistance, good bending resistance, high heat resistance, and resistance to stick. Provides faster cutting speeds than other substrates and is harder but more brittle. Carbide material with good drilling properties ensures high working efficiency. Sharp spiral flutes provide fast, neat and smooth cuts. The spiral groove facilitates the export of metal chips, which saves time and effort in operation.
Useful Tips:
— Keep cool and gentle when using. Not recommended for use with a hand drill (easy to shake, poor stability). Proper use can greatly extend the working life of twist drill bits. If there is a problem with chip evacuation, go back in time and remove the chips. Be careful and control your CNC speed.

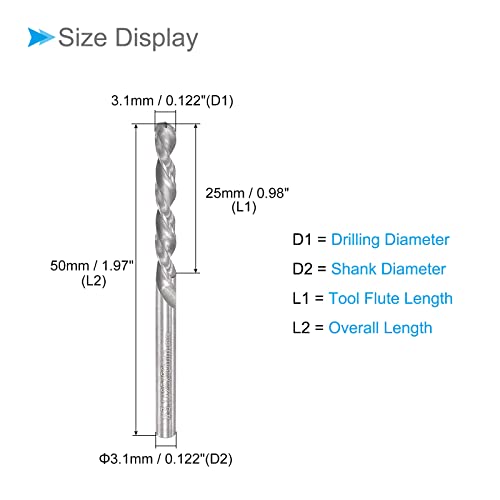

★ Carbide Drill Bit Size — Drilling diameter: 3.1mm / 0.122″; tool flute length: 25mm / 0.98″; shank diameter: 3.1mm / 0.122″; overall length: 50mm / 1.97″; drilling direction: left hand; tool flute type: spiral; hardness: 91HRA

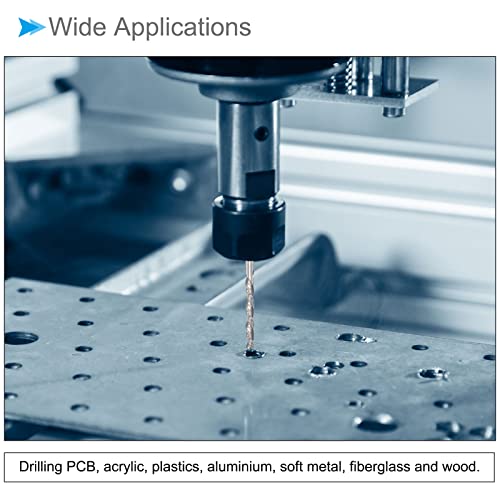

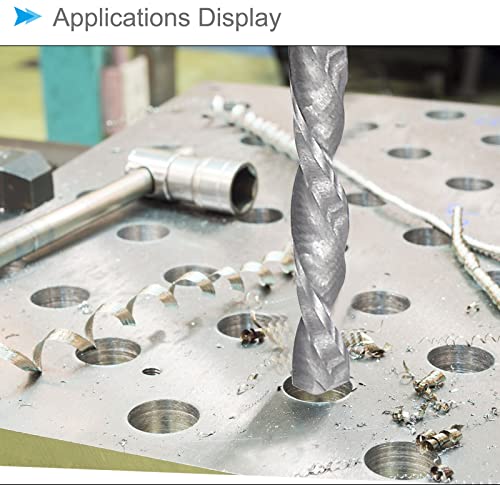

★ Wide Applications — Widely used for precision drilling of alloy steel, stainless steel, tool steel, carbon steel, cast iron, copper, hard plastic. Use on machining centers, CNC lathes, drill presses and bench drills.

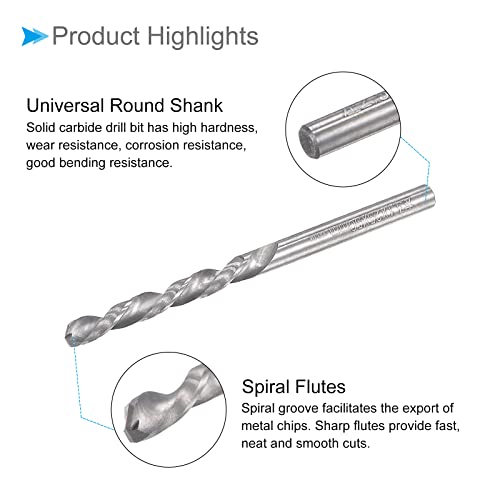

★ Spiral Flutes — The spiral groove facilitates the export of metal chips, which saves time and effort in operation. Sharp flutes provide fast, neat and smooth cuts. Provides faster cutting speeds than other substrates and is harder but more brittle.
★ YG6X (C3/K10) Tungsten Carbide — It is a micro grain tungsten-cobalt alloy with an average cobalt content of 6%, high hardness (91.5HRA), wear resistance, corrosion resistance, good bending resistance, high heat resistance, and resistance to stick.
★ Useful Tips — Keep cool and gentle when using. Not recommended for use with a hand drill (easy to shake, poor stability). Proper use can greatly extend the working life of twist drill bits. If there is a problem with chip evacuation, go back in time and remove the chips.
